Building a 1963 Vintage Lake Placid Blue Telecaster - Pickup Cavities

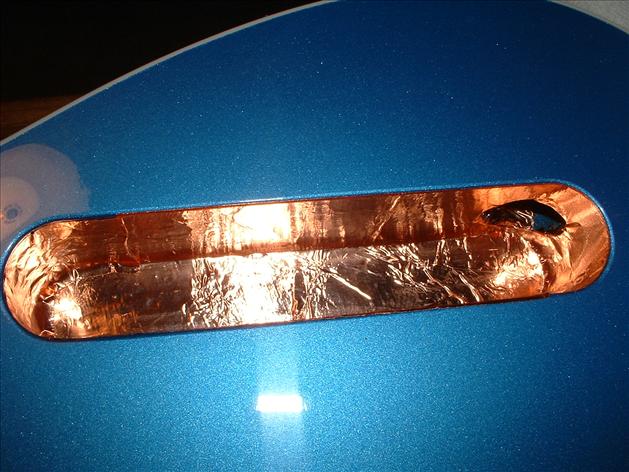

Step-2) - I measured the depth of the cavity and approximated the length around the cavity. I cut a piece of copper foil a little bigger. To install I slightly rolled the foil and inserted it into the cavity so the top edge of the foil met the top edge of the cavity. Some pressure along the cavity walls and the foil was in place.
