Building a 1963 Vintage Lake Placid Blue Telecaster - Installing the Input Jack

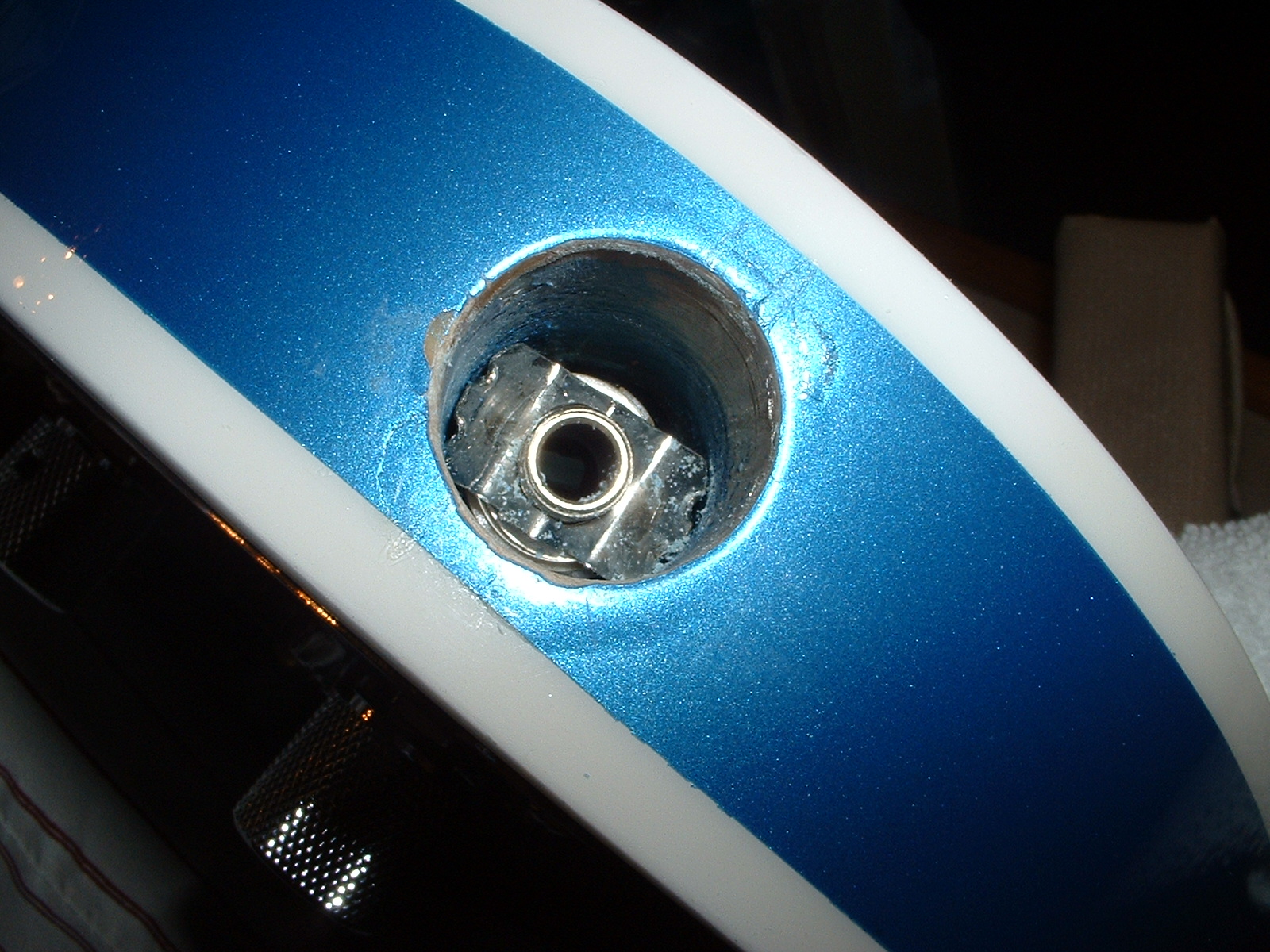

The input jack in the input jack recess in the body. Notice the bubbled and chipped finish around the edge of the input jack hole. I had to widen the opening of this hole as well, due to the finish, and the paint simply chipped and flaked off. I had to perform some delicate gluing and did not do that great of a job. I thought the jack cover would hide most of it but I was mistaken - live and learn.
