Building a 1963 Vintage Lake Placid Blue Telecaster - Installing the Input Jack

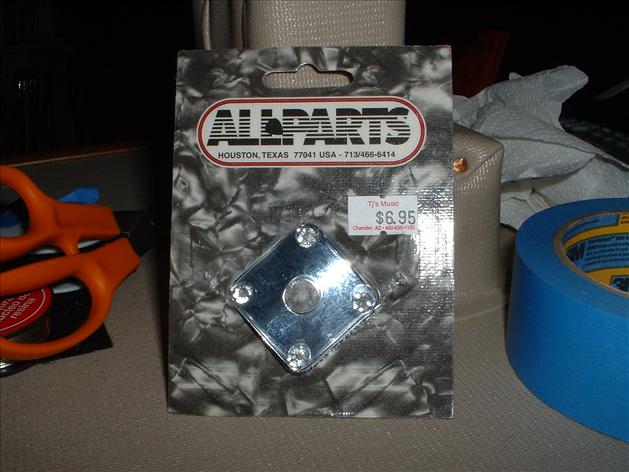

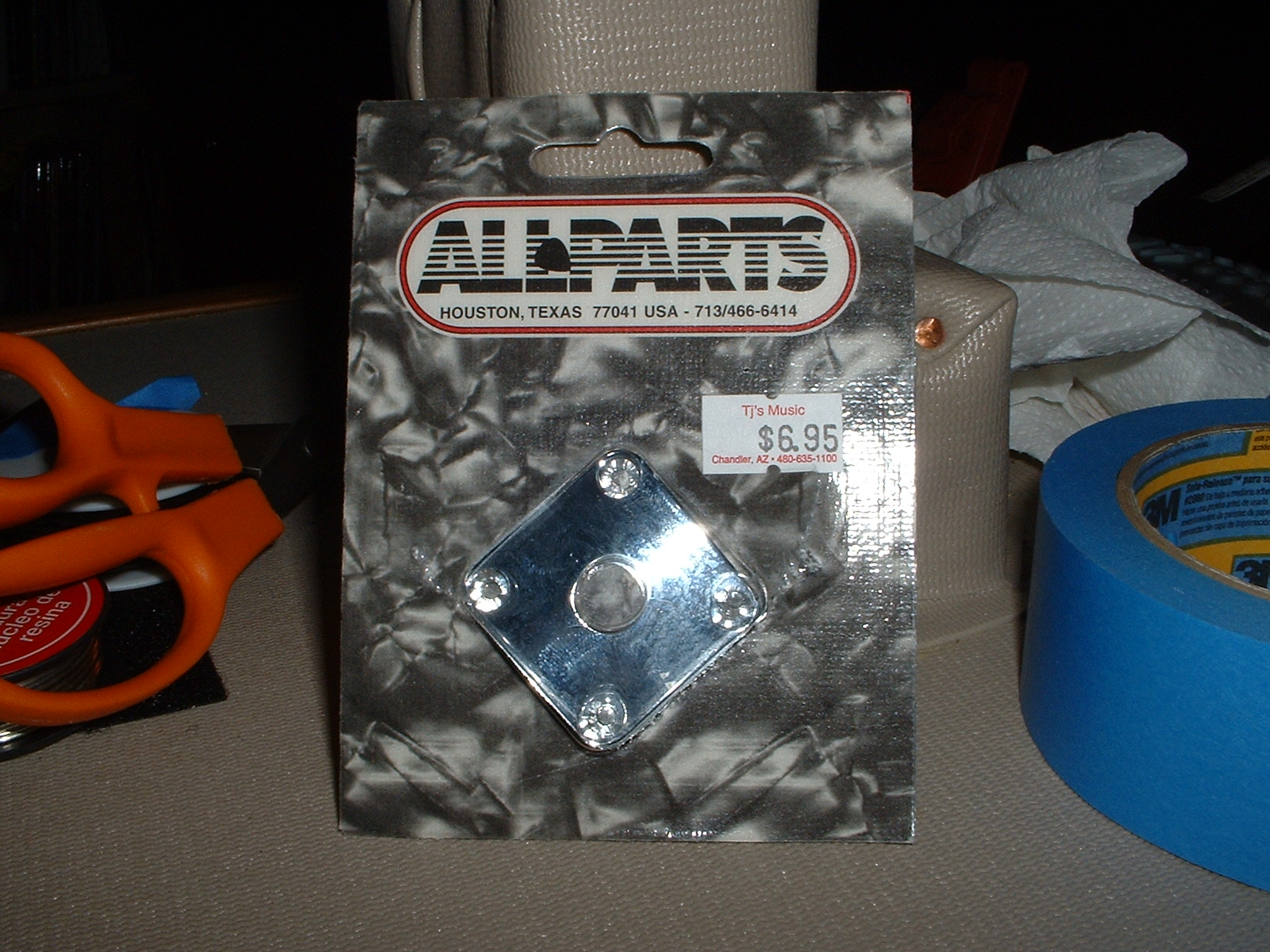

The new input jack cover plate - similar to the Les Paul square cover plate. This will cover the little chip remnants that can be seen with the original recessed "cup style" cover plate. It will also provide a better seat for the input jack. [Added 10/24/06]
