Building a 1963 Vintage Lake Placid Blue Telecaster - Pickup Cavities

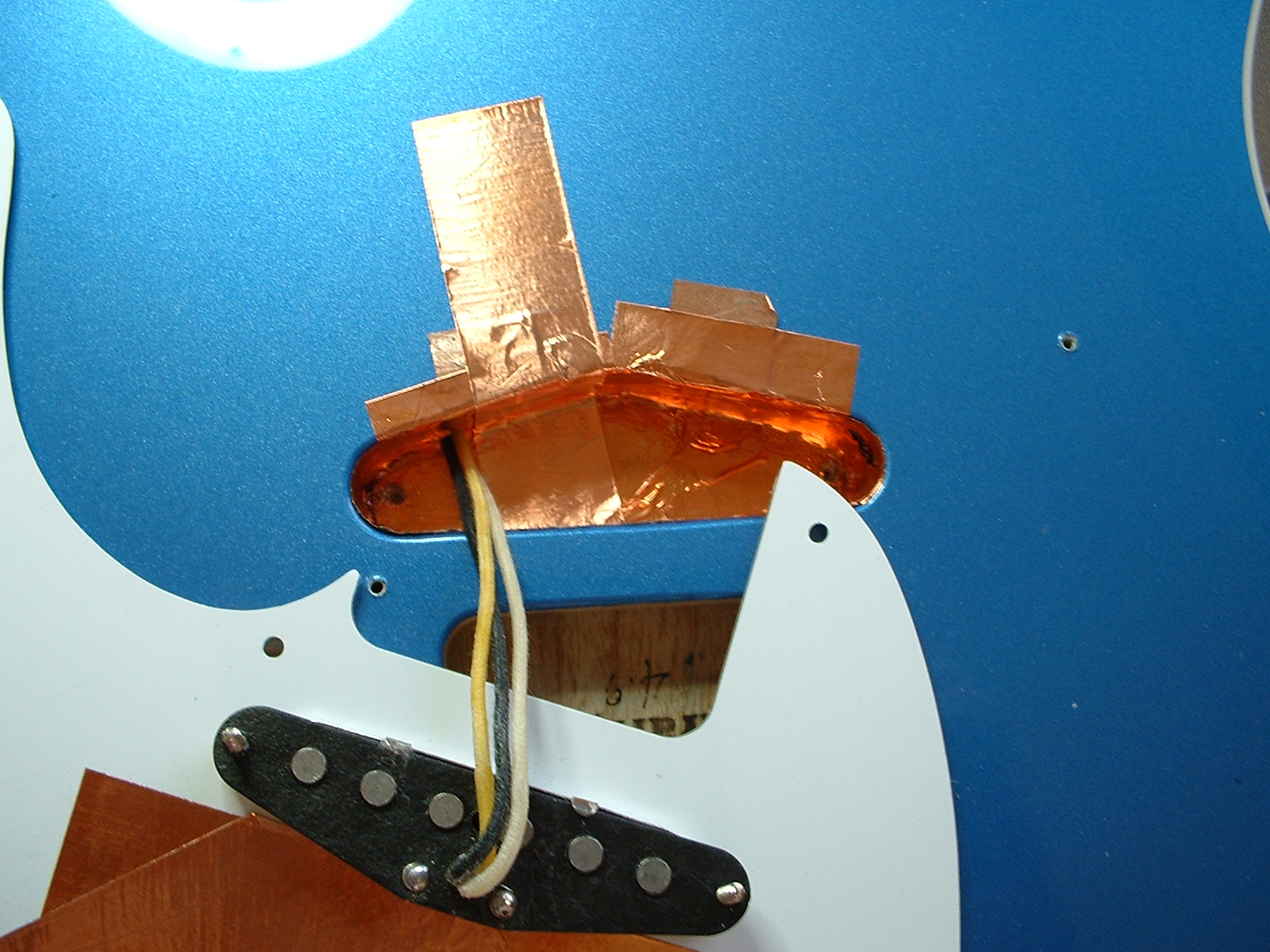

The two "wings" behind the strip of foil tape in the neck pickup cavity I put there originally. I reversed them so they would connect to the piece of foil on the underside of the pickguard and with the foil in the pickup cavity. I realized, after visiting ReRanch's website, that it's better to solder a connection point for the pieces of foil. [Added 10/24/06]

Building a 1963 Lake Placid Telecaster - Home
Back to Shielding the Pickup Cavities Gallery

Download hi-res version (1600x1200) 120-Pickup-Cavities.JPG

Download hi-res version (1600x1200)
